Outstanding Machining Capability: With a maximum machining length of 500 mm and a maximum machining, angle of +24, this machine meets various complex processing requirements.
Efficient Internal Rotary Milling: Utilizes an internal rotary milling mode with a maximum of 6 tools. The spindle motor has a power of 8.8 kW and can reach speeds of up to 3000 RPM (factory setting),ensuring efficient and precise milling operations.
High-Performance Spindle: Features an <A 2-6> φ62 mm spindle design with a maximum clamping diameter of φ45 mm. The spindle motor has a power of 5.9 kw and can reach speeds up to 3000 RPM (factory setting), providing stable performance and robust durability.
Powerful Axial System: The X/Z/Y axis travel is 360 mm,550 mm, and 550 mm, respectively, Each axis motor has a power of 3.9 kw, with rapid movement speeds up to 10m/min. The machine’s repeat positioning accuracy is ± 0.005 mm, achieving exceptional machining precision.
Flexible Configuration: Offers a range of optional features, including a tailstock function and follow tool guide sleeve, Additional options include an integrated magnetic chip conveyor (temperature-controlled dual magnetic zone,oil cooler, mist collector, and automation system, further enhancing the machine’s production capabilities.
Groundbreaking New Technology CNC Milling Lathe Machine DS-45W, equipped with an A2-6 (Φ62) spindle, featuring a maximum machining length of 500mm and a clamping diameter of Φ45mm. Offers high machining speed and it can fit with an integrated magnetic chip conveyor, oil cooler, and other automated systems for enhanced production efficiency.
CNC Milling Machining Center

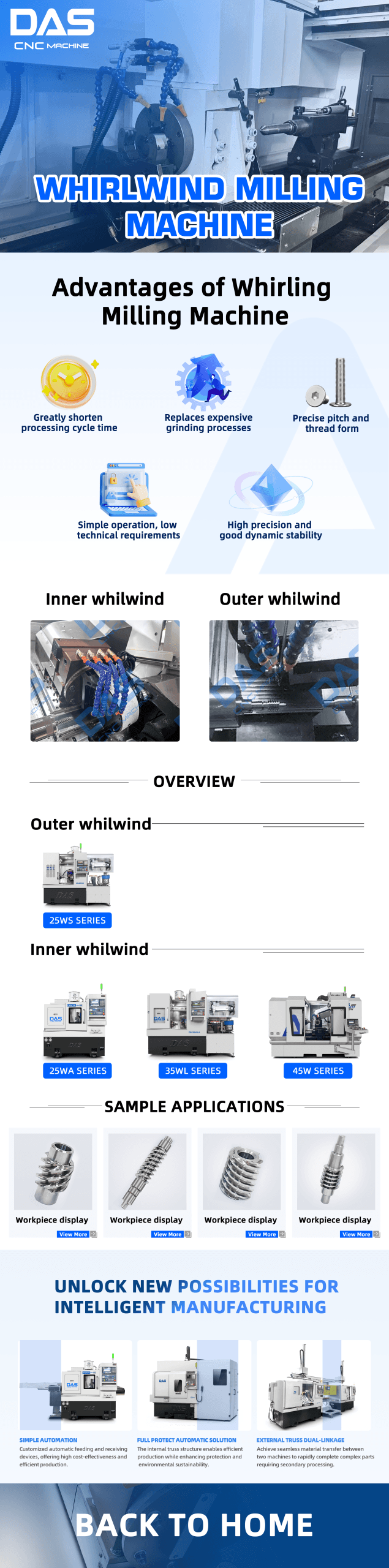

whirlwind milling machine introduction
