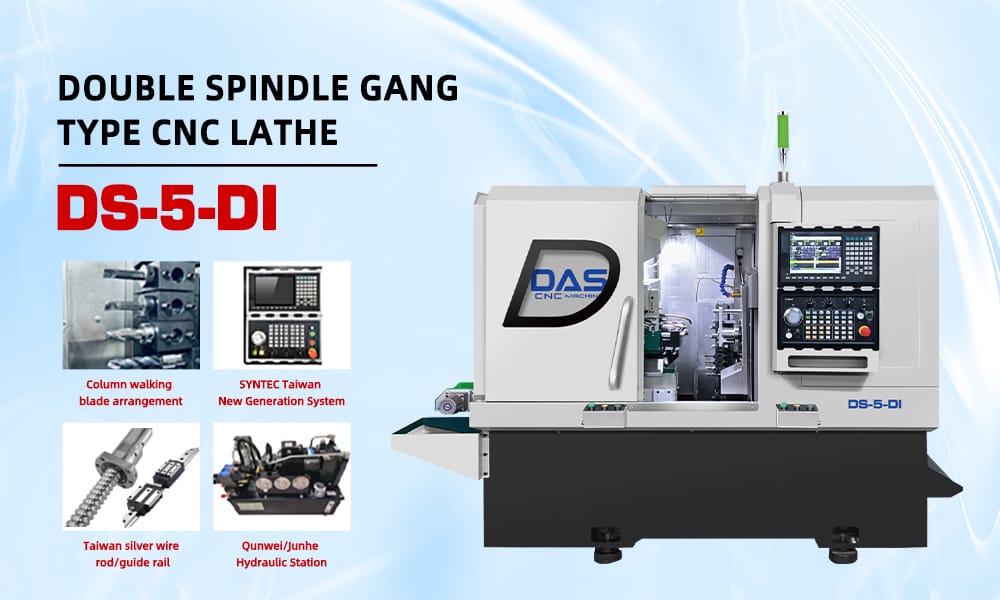

DAS DOUBLE SPINDLE GANG TYPE CNC LATHE (STAND COLUMN TYPE, TOOL MOVING)
Dual-spindle gang type CNC lathe, suitable for machining small double-ended workpieces. Equipped with 5-inch dual spindles, one of which is movable for convenient alignment during machining.
Configuration of the DS-5-DI
Product Specifications
| Item | Unit | DS-5-DI |
| Max.Swing Diameter | mm | Φ200 |
| Max Process Diameter | mm | Φ129 |
| Max Process Length | mm | 150 |
| Spindle Nose | – | A2-4(36 Type) |
| Sub-Spindle Nose | – | A2-4(25 Type) |
| Tool Holder Center Height | mm | 65 |
| Spindle Speed | r/min | 0-4500(Factory Setting) |
| Spindle Bore | mm | Φ46 |
| Sub-Spindle Bore | mm | Φ32 |
| Spindle/Sub-Spindle Motor Power | kw | 5.5/5.5 |
| Tool Installation | – | Gang Type |
| X1/Z1 Axis Travel | mm | 670/220 |
| X2/Z2 Axis Travel | mm | 600/200 |
| X1/Z1/X2/Z2 Axis Servo Motor Power | kw | 1.7/1.7/1.7/1.7 |
| Square Tool Holder | mm | 16×16 |
| Round Hole Tool Holder | mm | Φ20 |
| Sub-Spindle Barrel Clamp Type | – | Push forward type |
| Guide Form | – | Linear guide way |
| X1/X2/Z1/Z2 Axis Fast Moving Speed | mm | 24/24(Factory Setting) |
| X1/X2/Z1/Z2 Axis Repeatability Accuracy | mm | ±0.005 |
| Hydraulic Station Motor Power | kw | 1.5 |
| Pump Motor Power | w | 750×2 |
| Machine Power | kw | 22 |
| Net Weight | kg | 4500 |
| Machine Dimensions(L x W x H) | mm | 2500 x 1700 x 1750 |
